Erosion Control Gabion Box Retaining Wall/ PVC Coated Galvanized Gabion

FOB Reference Price:Get Latest Price
$1.00 - $35.00 / Set | 10 Set/Sets (Min. Order)
Aperture:
80*100mm,60*80,100*120mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 6 Negotiable
Customization:
Customized packaging (Min. Order: 1000 Sets)
Customized logo (Min. Order: 1000 Sets)
Samples:
$30.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Hongye Metal
Model Number:
Gabion Box
Type:
Electric Wire Mesh
Material:
Low-Carbon Iron Wire, Galvanized Iron Wire
Application:
Gabions
Wire Gauge:
2mm-4.5mm
Hole Shape:
Hexagonal
Technique:
Woven
Galvanized:
Hot-dip or Electro galvanized
Surface treatment:
Hot Dipped Galvanized
Length:
2m-4m
Plastic Surface:
PVC coated
Lacing wire:
2.0mm
Mesh size:
60*80mm,80*100mm
Order:
Small Order Acceptable
Certificate:
ISO, IBR, SGS, ROHS, BV, etc.
keywords:
Erosion Control Gabion Box Retaining Wall
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Pallet or bundle to tie with iron wire
Port
Tianjin,China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 6 To be negotiated

Erosion Control Gabion Box Retaining Wall/ PVC Coated Galvanized Gabion

Product Description




Gabion basket is a cage made of Hexagonal wire, the wire diameter is based on the size of hexagonal. If use metal coated wire, the diameter to be 2.0mm-4.0mm,If use PVC coated wire, The OD to be 3.0-4.5mm, the wire diameter of frame edge is larger than hexagonal wire, In recent years, an emerging zinc-aluminum alloy gabion basket which coated with zinc and aluminum and Mixed rare earth alloy, is more Corrosion resistance than zinc coated gabions.

Gabion Basket

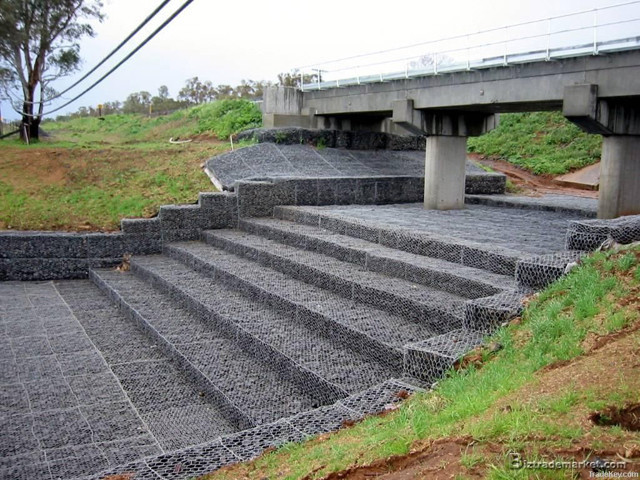

A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.

Gabion Basket

Length
(m)

Width
(m)

Height
(m)

Number of Cell

(each)

Volume
(m3)

2.0

1.0

1.0

2.0

2.0

3.0

1.0

1.0

3.0

3.0

4.0

1.0

1.0

4.0

4.0

2.0

1.0

0.5

2.0

1.0

3.0

1.0

0.5

3.0

1.5

4.0

1.0

0.5

4.0

2.0

2.0

1.0

0.3

2.0

0.6

3.0

1.0

0.3

3.0

0.9

4.0

1.0

0.3

4.0

1.2

The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc

                                       APPLICATIONS

Gabion Mattress

A Double Twisted wire mesh container uniformly partitioned into internal cells with relatively small height inrelation to other dimensions, having smaller mesh openings than the mesh used for gabions; gabion mattresses are generally used for riverbank protection and channel linings.

Gabion Mattress

Length
(m)

Width
(m)

Height
(m)

Number of
Cell(each)

Area
(m2)

3.0

2.0

0.17

3.0

6.0

4.0

2.0

0.17

4.0

80

3.0

2.0

0.23

3.0

6.0

4.0

2.0

0.23

4.0

8.0

3.0

2.0

0.3

3.0

6.0

4.0

2.0

0.3

4.0

8.0

The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc

                                          APPLICATIONS

Gabion Sacks

Gabion sacks  are cylindrical baskets, which are good for water to seep through the structure, relieving the hydrostatic pressures, insure the earth's shear strength, well for whole structure's stable; meanwhile, saved the charge for traditional retaining drainage equipment, low down the whole cost.

Hexagonal opening (aperture):80x100mm

Wire diameter: 2.7mm

Selvedge wire: 3.4mm.

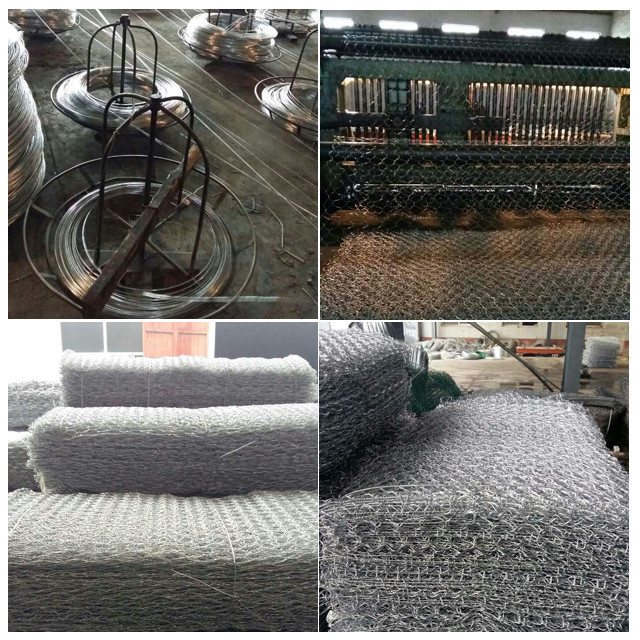

Production Process
